Product Details

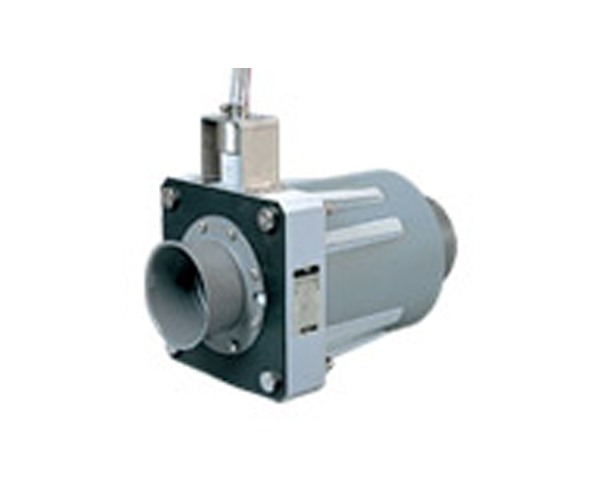

Product Name:Smart Electromagnetic Flowmeter
Manufacturer:Azbil
Availability:out of stock 0 item(s)
Product Code:
More Information :
Description
OVERVIEW
MagneW 3000 PLUS+ Open Channel
The MagneW 3000 PLUS+ Open Channel Flowmeter is designed for both open channel and closed channel flow measurement. In open channel measurements the MagneW provides accurate flow measurement even at minimal flow rates and is not effected by tidal levels or hydrostatic pressure changes. The detector is obstruction-less and has no moving parts resulting trouble-free operation and reduced maintenance costs.
Unlike other open channel flowmeter designs the MagneW provides an output that is linear with the flow rate.
FEATURES
- The detector can also be easily installed on any gate of an existing water channel. The channel may be an open or close type with rectangular or circular cross section.
- The construction is simple, having no moving parts. The flowmeters have sturdy resistance against staining, clogging or corroding if a fluid contains suspensions or adherents.
- The flow signal is linear, having a high measuring accuracy from 100% down to zero flow rate.
- A wide measuring range of 0 – 0.3 to 0 – 10 m/s. can be covered. Still larger flows can be measured at the same water head by installing dummy detectors in parallel with the detector which are of the same physical dimensions.
- If the weir cannot be installed on the downstream of the detector, the weir with an elbow flange is conveniently used.
- The elbow flange is covered with a cover (optional), realizing expand- ability from a small to large flow rate measurement.
- The detector body is made of plastics, resulting in light and corrosion resistant structure.
- Installation is simple, greatly reducing the cost and time for the engineering work.
