Product Details

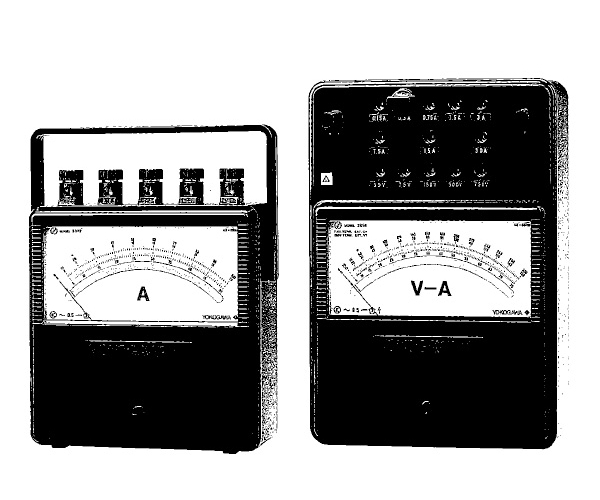

Product Name:Portable AC Ammeters & Voltmeters 2013 - 2014

Manufacturer:Yokogawa
Availability:out of stock 0 item(s)
Product Code:
More Information : Models 2013 and 2014 ammeters & voltmeters are moving iron type instruments using a taut-band suspension system. The suspension system provides excellent reproducibility without friction, and good resistance to shock impact. A cap shield mechanism serving to reduce external magnetic fields, a superior temperature compensation circuit, and other components ensure stable performance.

Description

Specifications - Model 2013 01

Max. Scale Value 20/100 mA
Approximate Internal Resistance and Consumed Power 0.3/0.2 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 03

Max. Scale Value 100/500 mA
Approximate Internal Resistance and Consumed Power 0.5/0.5 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 04

Max. Scale Value 0.2/1 A
Approximate Internal Resistance and Consumed Power 0.4/0.4 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 05 (DISCONTINUED)

Max. Scale Value 0.5/2.5 A
Approximate Internal Resistance and Consumed Power 0.5/0.5 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100/125 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 06

Max. Scale Value 1/5 A
Approximate Internal Resistance and Consumed Power 0.6/0.6 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 07

Max. Scale Value 2/10 A
Approximate Internal Resistance and Consumed Power 0.7/0.7 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 08

Max. Scale Value 5/25 A
Approximate Internal Resistance and Consumed Power 1/1 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100/125 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 09

Max. Scale Value 10/50 A
Approximate Internal Resistance and Consumed Power 1.2/1.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 10

Max. Scale Value 20/50/100/200 mA
Approximate Internal Resistance and Consumed Power 0.4/0.3/0.2/0.3 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 11

Max. Scale Value 0.1/0.2/0.5/1 A
Approximate Internal Resistance and Consumed Power 0.2/0.3/0.4/.5 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 12

Max. Scale Value 0.5/1/2/5 A
Approximate Internal Resistance and Consumed Power 0.7/0.6/0.5/0.3 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 13

Max. Scale Value 2/5/10/20 A
Approximate Internal Resistance and Consumed Power 0.5/0.3/0.6/0.9 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 14

Max. Scale Value 10/20/50/100 A
Approximate Internal Resistance and Consumed Power 0.6/0.9/1.7/2.7
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 15

Max. Scale Value 15/30 V
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 16

Max. Scale Value 30/75 V
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 17

Max. Scale Value 75/150 V
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 18

Max. Scale Value 150/300 V
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 19

Max. Scale Value 300/750 V
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 20 (DISCONTINUED)

Max. Scale Value (5 A)
Approximate Internal Resistance and Consumed Power 0.2 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100/150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 21 (DISCONTINUED)

Max. Scale Value (150 V)
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100/150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 22 (DISCONTINUED)

Max. Scale Value 500A (500 AT)
Approximate Internal Resistance and Consumed Power Used in combination with Current transformer 2244 (accessory)
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100/150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 23 (DISCONTINUED)

Max. Scale Value 0.5/1/2/5
Approximate Internal Resistance and Consumed Power 1.2 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 24 (DISCONTINUED)

Max. Scale Value 2/5/10/20 A
Approximate Internal Resistance and Consumed Power 1.2 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 25 (DISCONTINUED)

Max. Scale Value 10/20/50/100 A
Approximate Internal Resistance and Consumed Power 3.5 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 100 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 26 (DISCONTINUED)

Max. Scale Value 75/150 V
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2013 27 (DISCONTINUED)

Max. Scale Value 150/300 V
Approximate Internal Resistance and Consumed Power 3.8 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 195 x 170 x 87 mm
Approx. External Weight 1.7 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.



Specifications - Model 2014 00

Max. Scale Value 30/75/15/300/750V
0.15/0.3/0.75/1.5/3/7.5/15/30A
Approximate Internal Resistance and Consumed Power Current measurement range 7.5 A or less 0.7 VA
Each voltage measurement range 4.5 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 0.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 85°)
Operating Frequency Range 45 ~ 65 Hz
Linemax 250V
Scale Divisions 150 divisions
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 260 x 180 x 115 mm
Approx. External Weight 4.2 kg
Optional Accessories 2291 01 Carrying case for 2013
2292 01 Carrying case for 2014

Features:

  • Taut-band suspension system eliminates friction and provides good resistance to shock impact.
  • Stable performance ensures that changes over time are negligible.
  • Magnetic circuit reduces the effects of external magnetic fields.
  • Superior temperature compensation circuit reduces external temperature effects.
Back to: Kiểm tra - Đo lường điện và Điện tử
