Product Details

Product Name:2 Piece Portables

Availability:out of stock 0 item(s)

Product Code:

More Information : PJ High Frequency Surge Testers 2 PIECE PORTABLES

Description

MODEL NUMBER*	APPROX. WEIGHT	DIMENSIONS L" x W" x H"	POWER INPUT (Volt Amps)	PEAK VOLTAGE OUTPUT	PEAK CURRENT OUTPUT
H6	42 lbs	22" x 19" x 8.0"	420 VA	6,000 V	185 amps
H10	44 lbs	22" x 19" x 8.0"	720 VA	10,000 V	330 amps
H12	46 lbs	22" x 19" x 8.0"	840 VA	12,000 V	380 amps
H15	48 lbs	22" x 19" x 8.0"	1080 VA	15,000 V	500 amps

*Please add the following designation, "-2M", after the model number for PJ Surge Testers designed to operate from 220-240 operating line voltage. For example, the Model H12 would be identified as Model H12-2M.

For the complete list of standard features on all Models, please link to our Price List page.

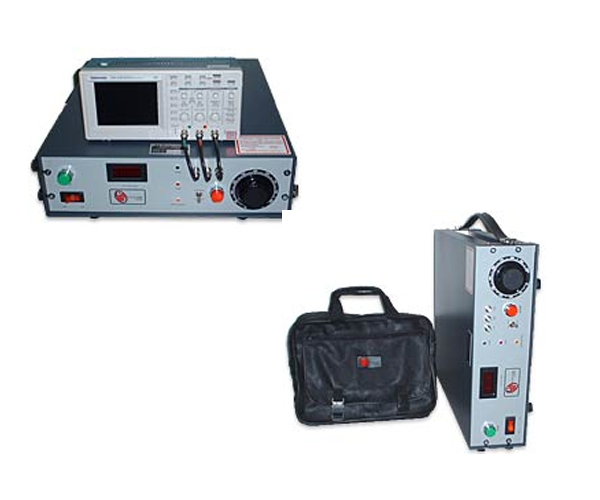

H models - Updated Photo "H" Model:
The H models are "2 piece" versions of the Signature ("S") Models with PJ's exclusive/unique High Frequency Technology capable of testing the integrity of any turn to turn insulation, including low inductance windings. These compact two piece portable digital surge testers come complete with a Rigol DSE series, fully digital storage color oscilloscope, 10' long test cables and a soft carrying case with a shoulder strap. The carrying case is used to store the oscilloscope, manuals, printer and accessories when testing in the field. (Picture may not show actual oscilloscope.)
