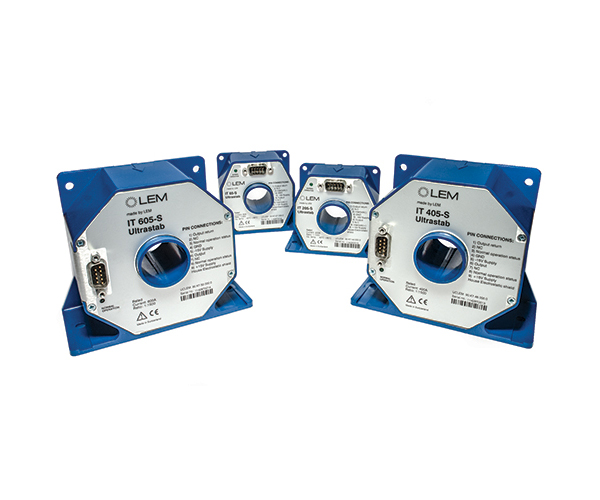

Main characteristics:

• Nominal current measurement: from 60 and 600 ADC
• Excellent linearity, better than 12 ppm over temperature range
• High resolution
• Very low offset over temperature range from 36 to 400 ppm
• Overall accuracy @ I_PN between < +/- 0.004 % to 0.04 % over temperature range
• Wide frequency bandwidth up to 1000 kHz (+/- 3 dB)

Features:

• DC, AC pulse currents’ measurements with galvanic isolation
• Fluxgate technology
• Electrostatic shield between primary and secondary circuit
• Power supply +/-15 V
• Operating temperature range from -40 to +85°C
• D-Sub 9 male interface output
• Current output
• Really quick response time (

Standard compliance:

• European Directive EMC 2004 / 108 / EEC : CE Marking
• Typical applications:
  • Feedback element in high performance gradient amplifiers for MRI
  • Feedback element in precision current regulated devices (power supplies…)
  • Precise and high stability inverters
  • Medical equipment
  • Energy measurement
  • Power analyzers
  • Calibration units
  • Test and Measurement equipment

Remarks:

• Current overload capability
• Additional output indicating the transducer state
• A LED shows normal operation
• Expected to accommodate round primary conductors of 26 and 30 mm diameter (according to model used)
