Product Details

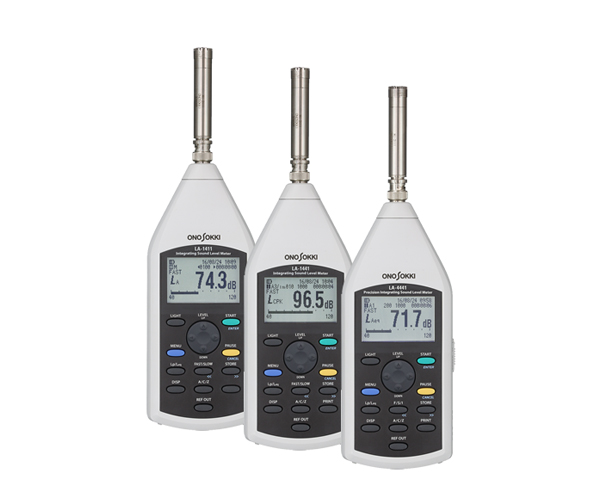

Product Name:Integrating sound level meter

Manufacturer:ONO SOKKI
Availability:out of stock 0 item(s)
Product Code:
More Information : New three models of integrating sound level meter LA-1411/1441(Class 2) and LA-4441 (Class 1) are applicable to IEC 61672-1:2013, JIS C 1509- 1:2017. The all models can perform simultaneous measurement of seven sound parameters including equivalent continuous sound level without adjusting the level range corresponding to the sound fluctuation and display the selected parameters.

Description

he microphone is able to be used away from the main unit of sound level meter by using exclusive coaxial cable(s). Featuring curve-shaped body with minimum affects from sound reflection, easy-to-read and intuitive operating menu etc., our new sound level meters have greatly improved more than ever easier as ergonomically designed interface.

Moreover, LA-1441/4441 sound level meters can transfer the measurement result to a PC with simple and quick operation via RS-232C or USB interface. The sound level meter can be controlled remotely from PC using software (user preparation).

LA-1411 ●Integrating sound level meter (Class 2) for product testing and measuring the sound level generated from machines etc.
●High-performance and cost-effective model
LA-1441

●Integrating sound level meter (Class 2) for measuring the working environment and environmental noise
●Auto measurement function by timer and trigger.
●Level trend can be recorded at the interval from 1ms. (Lp memory function)
●Equipped with USB and RS-232C interfaces

LA-4441

●Precision integrating sound level meter (Class 1) for sound analysis and product testing.
●Time weighting (10ms, Impulse) corresponding to the fast sound fluctuation.
●Level trend can be recorded at the interval from 1ms. (Lp memory function)
●Equipped with USB and RS-232C interfaces



Features

Simultaneous measurements of seven sound items including equivalent continuous sound level (Leq) and displays of measurement results to be selected.

Essential seven sound items for sound measurement including equivalent continuous sound level (Leq) can be measured at the same time, and also displayed to be selected. The new LA series sound level meters greatly help the effective sound level measurement without any miss-measurement.

Lp time-weighted sound level
Leq time-average sound level (equivalent continuous sound level)
LE sound exposure level
Lmax maximum time-weighted sound level
Lmin minimum time-weighted sound level
Lpk peak sound level
L percentile sound pressure level


(Technical terms given here are based on IEC standards.)

Microphone can be separated from the main unit of sound level meter by connecting several exclusive coaxial cable(s).

Microphone can be separated from the main unit of sound level meter by connecting several exclusive coaxial cable(s). It enables measurement of great distance away.

Simple and easy data processing

Connecting the main unit of sound level meter with Windows-based PC via RS-232C or USB cable, the new LA series can transfer the obtained measurement data to the PC easily and quickly, also can be operated and controlled remotely from PC with a software (user preparation).
(Excluding LA-1411)

Illustration (Simple and easy data processing)





System configurations

Illustration (system configuration)
* LA-1411 is not able to be connected to USB and RS-232C.





Specifications

  LA-1411 LA-1441 LA-4441
Applicable standard

IEC 61672-1 : 2013 Class 2

IEC 61672-1 : 2013 Class 1

JIS C 1509-1 : 2017 Class 2
JIS C1516 : 2014 Class 2

JIS C 1509-1 : 2017 Class 1
JIS C1516 : 2014 Class 1
Microphone

1/2-inch backelectret-type
condensor microphone MI-1433
Nominal sensitivity level:-29 dB

1/2-inch backelectret-type
condensor microphone MI-1235
Nominal sensitivity level:-29 dB

Preamplifier

MI-3111 Preamplifier for mocrophone

Linearity range

100 dB (Wide range), 80 dB (Normal range)

Measurable frequency range

10 Hz to 8 kHz(IEC, JIS)

10 Hz to 20 kHz(IEC, JIS)
Measurement level range

A : 26 to 135 dB(IEC, JIS)
C : 31 to 135 dB(IEC, JIS)
Z : 36 to 135 dB(IEC, JIS)

A : 27 to 135 dB(IEC, JIS)
C : 30 to 135 dB(IEC, JIS)
Z : 35 to 135 dB(IEC, JIS)
Frequency weighting

A,C,Z

Intrinsic noise

A : 15 dB or less
C : 17 dB or less
Z : 25 dB or less

A : 16 dB or less
C : 17 dB or less
Z : 24 dB or less

Level range

20 to 90 dB, 30 to 90 dB, 40 to 100 dB, 50 to 110 dB, 60 to 120 dB (Normal range),
70 to 130 dB, 40 to 120 dB (Wide range)

Time weighting

FAST, SLOW

FAST, SLOW, Impulse, 10 ms
Measurement items Lp, Leq , LE, Lmax, Lmin, Lpk, L(LHI, L5, L10, L50, L90, L95, LLO, LAV)
Level trend p, every kind of calculated value

Lp, every kind of calculated value
(Read out the displayed value as auto memory recall)

Sampling interval

31.25 μs (other than LN )
100 ms(LN)

20.83 μs (other than LN)
100 ms(LN)
Measurement time Manual, arbitrary setup (199 h 59 m 59 s max.)
Total measurement time --- Arbitrary setup (199 h 59 m 59 s max.)
Start mode Manual only Manual, timer (Hour,minute), trigger (can be started after a lapse of specified time [0 to 10 seconds, in increment of 1 minute] after trigger detection: trigger delay function)
Internal calibration signal (REFOUT) 1 kHz sine wave (For upper limit level range : -6 dB(normal range), -16 dB(wide range))
Recommended sound calibrator SC-2500,SC-3120,SC-2110A SC-2500,SC-3120
Display LCD with LED backlight semitransparent (124 x 64-dot)
Measurement value display by numeric and bar indicators
List display and trend graph display for various kinds of calculated values
Displays of date, time, measurement time, and conditions of various kinds of instruments
Display update time Display by numeric:1 s, bar indicator: 0.1 s, trend screen: 0.2 s
Manual memory function Total calculated values: 100 addresses
Auto memory function --- Leq : 1000 addresses x 200 blocks
Total calculated values: 100 addresses x 200 blocks
Lp Record memory function --- Sound level with time weighting is stored at the specified interval. (1000 address × 200 blocks)
Storing intervals (1 ms, 2 ms, 5 ms and 10 ms)
Measurement condition memory function Condition memories (9 kinds)
Resume function Settings activated at power ON can be selected from follows; settings used at previous power OFF, factory setting, and any condition memory number which is set from menu.
Backup function The backup of data stored in clock and memory can be performed by built-in secondary power source.
• Time for full charged: approx. 24 hours
• Backup period: more than 3 months (when stored at temperature of 23 °C)
AC output *1 0.707 Vrms/F.S (normal range), 2.236 Vrms/F.S. (wide range), load resistance 10 kΩ or more (with upper-limitation value of bar indicator)

Frequency weighting can be selected: conjunction with selected frequency weighting or fixed to Z-weighting.

DC output *1 2.5 V/F.S. (with upper-limitation value of bar indicator)
Amount of voltage fluctuation per 10 dB: 0.25 V
Load resistance: 10 kΩ or more
External control input --- Operation: toggle operation of start/place in pause

Specifications of hardware: negative pulse input
 (voltage level: Low:0.0 to 0.5 V, Hi:3.0 to 50 V)

Pulse width: 100 ms or more
Absolute maximum rated input voltage: 5 V

Comparator function (Option: LA-0141) *2 --- Set comparison value : 40.0 to 130.0 dB
(in increment of 0.1 dB)
Comparison item : Lmax or Lpeak
Delay time : 0 ms, 100 ms, 1 s, 5 s
HOLD time : 100 ms, 1 s, 5 s, manual
Output logic : negative or positive logic
Output format : open collector
(withstand voltage:+3 to +24 VDC, current:50 mA or less)
Timer function Built-in (year/month/day/hour/minute)
RS-232C

---

Control of operation, data output,
print out (to the DPU-414 printer)
Baud rate : 9,600/115,200 bps
USB

---

Control of main unit and data output,
USB 2.0 FULL SPEED (connecting virtual COM port)
Cable extension *3

(Between microphone and main unit)

305 m max. 105 m max.
Printer function -
Content: Measurement value, measurement start/stop time, measurement time interval, frequency weighting,
time weighting
Mode: Normal (alphanumeric) or screen image
Applicable printer: DPU-414
Power requirement Type AA battery × 2 pcs.
(manganese (6R) or alkaline (LR6) or oxyride (ZR6)) or PB-7090 AC adapter (option))
Battery life (continuous using) Approx. 8 hours (LR6 alkaline battery in use / 23 °C/ backlight off / not RS-232C・USB in use)
Operating (storage) temperature range -10 to 50 °C (-20 to 60 °C)
Operating (storage) humidity range 25 to 90 %RH (10 to 90 %RH) with no condensations
Outer dimensions Approx. 78(W) × 263(H) × 47(D) mm
Weight Approx. 360 g (including batteries)
Accessories

Windscreen×1 (φ 70 mm), carrying case×1, hand strap×1,
type AA battery × 2 pcs. instruction manual, operation guide

Option • LA-0141 Comparator output option
SC-2500 Sound calibrator (Class1)
SC-3120 Sound calibrator (Class1/c)
SC-2120A Sound calibrator (Class2)
• AG-2010 Microphone extension cable (10 m)
• AG-2030 Microphone extension cable (30 m)
• AG-2050 Microphone extension cable with code reel (50 m)
• AG-2100 Microphone extension cable with code reel (100 m)
• LA-0203D Tripod for sound level meter
• PB-7090 AC adapter (120 to 240 VAC)
• AX-501 Signal input-output cable (2 m)
• AX-5022 RS-232C cable for PC (2 m)
• DPU-414 Thermal printer for RS-232C
( AX-5024 RS-232C cable for printer (2 m) is supplied as standard)
• PW-C0725-W2-U AC adapter (100 to 240 VAC) for DPU-414 (by SEIKO instruments)
*1 AC or DC output is selectable from menu of sound level meter.
*2 Comparator function (LA-0141, option) cannot be installed with the LA-1411.
*3 The cable length given here is the length when each of the exclusive cable sold by Ono Sokki is used. The cable length less than 30 m is applicable to CE marking.





Accessories

Photo (Carrying case)



Photo (Accessories)





Options

LA-0141 Comparator output function

Outline This optional function outputs the signal when value exceeds the setting value. Useful for the determination of sound level under measurement.
Specifications
Set comparison value 40.0 to 130.0 dB(in increment of 0.1 dB)
Comparison item Lmax or Lpeak
Delay time 0 ms, 100 ms, 1 s, 5 s
It can be used for the determination only when the measured value keeps exceeding against the setting value. Error-determination caused from single-shot sound can be avoided. When HOLD setting is manual, setting to delay conditions is automatically deactivated.
Hold time 100 ms, 1 s, 5 s, manual
It is a time period to hold output signal even though measured value goes below the setting value. When the operating mode is manual, output signal is held until next measurement starts.
Output logic Negative or positive
Output format Open collector
(withstand voltage: +3 to +24 VDC, current: 50 mA or less)



SC-3120 Sound calibrator (Class 2)/ SC-2500 Sound calibrator (Class 1)/ SC-2120A Sound calibrator (Class 2)

Outline

The SC-3120, SC-2500 and SC-2120A are sound calibrators which are indispensable for sound measurement, conforming to JIS C1515:2004 ( and SC-2500 / IEC 60942:2017). The SC-3120 is Class 1/C piston-phone type and outputted sound pressure at 250 Hz and 114 dB. The SC-2500 is Class 1 type sound calibrator with 1000 Hz and 114 dB output. It uses the sound pressure feedback control method to control fluctuations in sound pressure caused by static pressure to generate a stable sound pressure even if the operating environment changes. SC-3120 and SC-2500 are recommended sound calibrator for LA-1411/1441/4441. The SC-2120A is Class 2 speaker type sound calibrator with 1 kHz and 94 dB output.



LA-0207A+LA-0208A All-weather windscreen

Outline Using the all-weather type windscreen reduces noise caused by the wind when performing sound level measurements outdoors, and prevents the microphone from being damaged by rain or snow. Screen diameter:Φ 200 mm
Mounting screw:1/4-20 UNS depth 6(screw for tripod attachment) * Applicable to JIS C 1509-1:2005 and IEC 61672-1:2002 when the LA-0207A and LA-0208A are attached to the sound level meter.
* Periodical exchange is necessary for the expendables (windscreen, waterproof mesh).
Illustration (AG-2000 series Microphone Extension cable)



AG-2000 series Microphone Extension cable

Outline Microphone can be used away from main unit of sound level meter by connecting exclusive coaxial extension cable. Using exclusive coaxial cable enables measurement of extension and moving the measurement place easier with small-type code reel.

Illustration (AG-2000 series Microphone Extension cable)

Others

・ MI-0301 Microphone holder is a standard accessory of each extension cable.
・ Conjunction cable (5 m) for connecting to main unit of sound level meter is attached to an extension cable with code reel.
・ Microphone can be used away from main unit of sound level meter by connecting several extension cables.

AG-2010 :10 m
AG-2030 :30 m
AG-2050 :50 m with code reel
AG-2100 :100 m with code reel



AX-501 Output cable

Outline Output cable for AC / DC signal output, comparator output, and external control signal input. It is used for the connection to FFT Analyzer, data recorder, PC, and sequencer etc.(2 m)

Illustration (AX-501 Output cable)



AX-5022 RS-232C cable

Outline

IF cable for connecting the LA-1441/4441 and PC (RS-232C connector). (2m)

Illustration (AX-5022 RS-232C cable)

LA-0203D Tripod for sound level meter

Outline

Standard tripod for use with sound level meter. The maximum of height is 161.5 cm and minimum height can be reduced to less than 10 cm by reversing the tripod and attaching the center pole to the sound level meter.

Photo (LA-0203C Tripod for sound level meter)



PB-7090 AC Adapter

Outline

Input voltage : 100 to 240 VAC
Output voltage : 5.9 VDC
Output connector : EIAJ RC-5320A Voltage category 2
Rated output current : 3.5 A
Total length: 3.5 m

* Please specify the input voltage of the adapter with your order; 120 to 240 VAC.

Photo (PB-7080 AC Adapter)



DPU-414 Thermal Printer with RS-232C interface

Outline

Interface printer with RS-232C. Manual print, auto print, and memory print are possible. The hard copy of display screen can be performed by connecting to the LA-1441/4441. Connection cable (AX-5042)(2 m) is supplied as standard. Options (sold separately)
 · AC adapter PW-C0725-W2-U (100 to 240 VAC Domestic specification)
 · Recording paper CX-050B (30m/roll, 10 rolls/box)

Photo (DPU-414 Thermal Printer with RS-232C interface)

Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation in the United States and other countries.
Other product names and model names are trademarks or registered trademarks of each individual company. The copyrights are reserved by each individual company.
Outer appearance and specifications are subject to change without prior notice.
