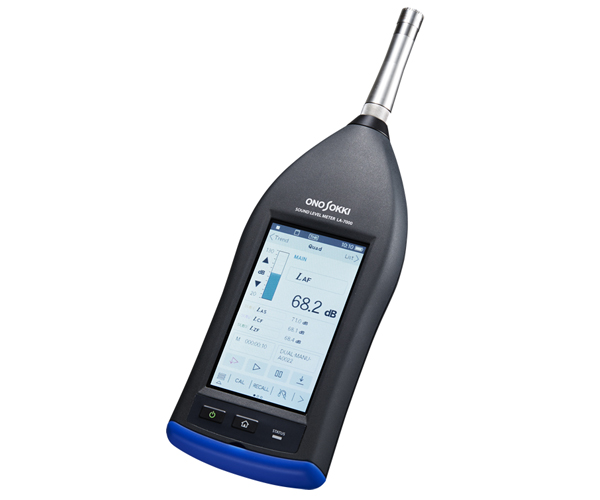

Product Name:High performance Sound Level Meter LA-7000 series
Manufacturer:ONO SOKKI
Availability:out of stock 0 item(s)
Product Code:LA-7000
More Information : The LA-7000 series is newly designed sound level meter which operation procedure has been greatly improved. The large color LCD and touch panel enable easy and intuitive operation.
Description
LA-7000 series allows “measuring while listening to sound” in addition to the original features of a sound level meter such as measurement and calculation.
By listening to the sound instantly at the measuring place, you can confirm condition of a target, perform sound source probing, and check that the sound is unfailingly being recorded. The LA-7000 series sound level meter is a great help for reliable measurement at measurement place where no mistakes can be allowed.

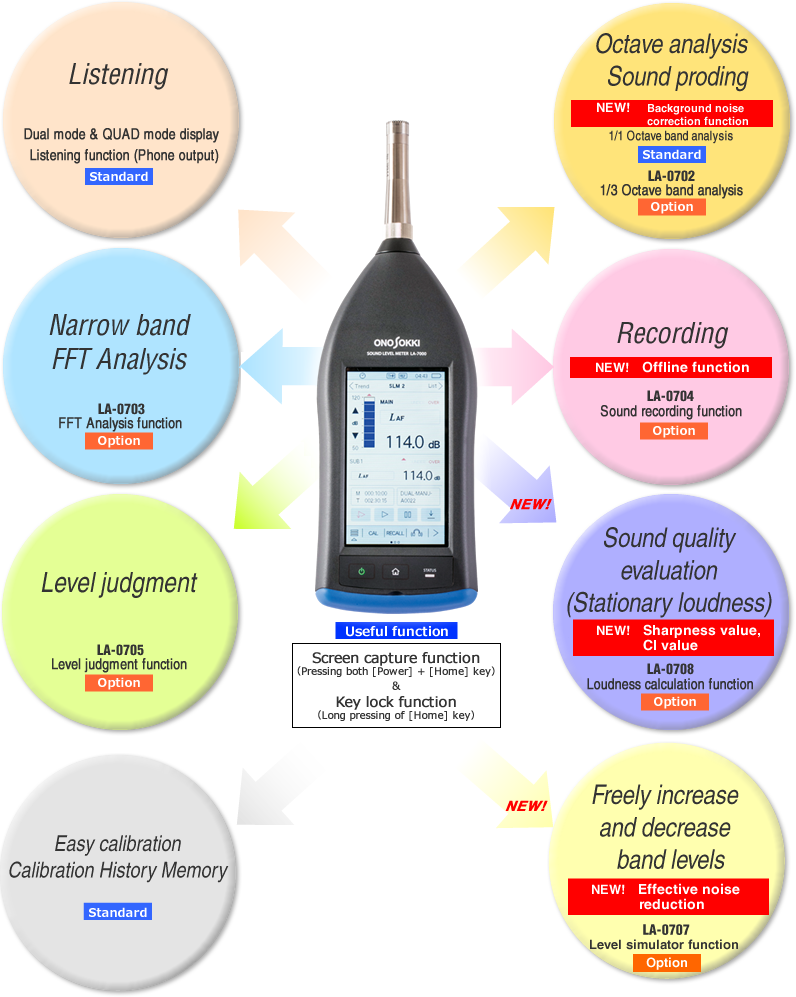

By adding various options, the LA-7000 series is able to be upgraded to a sound analyzer (frequency analysis) and a sound recorder*, performing more than just a sound level meter.
The measurement performance is substantially improved only using LA-7000 series which does multiple duties, such as sound measurement, sound recording, frequency analysis, and sound probing of abnormal sound.
By using LA-7000 series together with various analyses software, “waveform analysis”, “sound quality evaluation”, “fluctuation sound analysis”,and ”simulation of sound frequency” can also be performed.
Feature
4.3 inch (size for a smart phone), color
Displays overlapping graph with clarity
At one-touch operation
Recording and data storing are started just by
tapping with a finger.
Listening function
You can find the place from which the sound is occurring by turning the microphone (sound level meter) toward the sound. (It is also possible to listen only to the specified range of the sound.)
Compact
35 % of size-reduction in volume. Easy-to-hold design
Short lanyard for potable use
The short lanyard provided as an accessory prevents the sound level meter from slipping down.
Intuitive operation by a touch panel
It provides intuitive operation in easily understandable manner by even a beginner touching the sound level meter for the first time.
Home key
Home button leads you to the home screen.
Language selection
Selectable display language from English and Japanese
Capturing function
Capture image information by pressing power key and home key simultaneous.
Power supply from USB---Enables long-time measurement
12 hours of continuous operation: alkaline battery cells (size AA, 4 pcs.) used. Micro USB can be used. The USB consumption takes priority when alkaline battery cells are used in combination with an USB.
Windscreen correction function
Windscreen (standard accessory) does not require correction. (IEC61672-1:2013)
External power ON/OFF function---useful for built-in measurement
Easy ON/OFF operation by switching a battery box.
Listening function
DUAL mode & QUAD mode standard
Two or four of calculation values are able to be displayed on the screen. Useful when displaying multiple calculation values with different weightings, such as frequency weighting or time weighting.
Display example of QUAD mode
Listening function (Phone output) standard
This function enables measurement while listening to the sound.
•Effective for measurement in an anechoic room and remote place
•Effective for monitoring from remote place such as environmental sound measurement
*Extension cable and headphones are sold separately.
Octave Analysis / Sound probing
1/1 Octave Analysis function(RTA mode · Filter mode) standard
Conforming standard : IEC 61260-1:2014 Class1/ JIS C 1513-1: 2002 Class1, JIS C 1514-1:2002 Class 1
Analysis band : 16 Hz to 16 kHz (11 bands), Allpass1, Allpass2
Calculation item : Filter Mode (Bandpass, Allpass selectable) · · · Lp, Leq, LE,Lmax, Lmin, Lpeak, LN list
RTA Mode · · · Lp, Leq, LE, Lmax, Lmin (Main)
Measurement range : 10-80 dB, 20-90 dB, 30-100 dB, 40-110 dB, 50-120 dB, 60-130 dB, (excluding wide range)
Memory mode : Manual, Auto, Logging, Record* ( *when the LA-0704 installed )
RTA 1/1 mode
This is one of the frequency analysis modes which displays frequency divided by octave band. Vertical axis represents sound pressure level (sound loudness), and horizontal shows frequency (sound pitch). In this mode, it is obvious which pitch of sound is loud. Data comparison of RTA 1/1 data and MAIN data is available by overlapping drawing.
Filter 1/1 mode
By using the octave band filter, you can listen to only the interested sound even in noisy environment. It helps sound probing of abnormal sound. Data comparison of Allpass (all ranges) and Bandpass (specified band) is available.
1/3 Octave band Analysis function（RTA mode・Filter mode） LA-0702 option
It is possible to analyze and evaluate the sound which divided the octave band in more detail. It is also possible to listen to the sound through the 1/3 octave band filter. It is the analysis function and filter which are used most frequently in sound.
Specification
Analysis band: 12.5 Hz to 20 kHz(33 bands), Allpass1、AIIpass2
Obedient standard, calculation item, measuring range and memory mode: It's same as a mode 1/1 octaves. Please refer to it.
RTA1/3 mode
This is one of the frequency analysis modes which displays frequency divided by octave band. Vertical axis represents sound pressure level (sound loudness), and horizontal shows frequency (sound pitch).
In this mode, it is obvious which pitch of sound is loud. Data comparison of RTA 1/3 data and MAIN data is available by overlapping drawing.
Filter1/3 mode
By using the octave band filter, you can listen to only the interested sound even in noisy environment.
It helps sound probing of abnormal sound. Data comparison of Allpass (all ranges) and Bandpass (specified band) is available.
Narrow band frequency analysis
FFT Analysis function option
This function can perform analysis with finer line resolution (narrow band analysis) up to 1600 lines. The narrow-band analysis of not only the loudness but also the sound pitch (frequency) can be performed. Effective for frequency analysis of single-shot sound using trigger function
● Simultaneous processing of auto-memory and FFT Analysis: Continuous saving of numerical data
● Simultaneous processing of record-memory and FFT Analysis (The LA-0704 required)
● Fine line resolution (800 lines, 1600 lines)
● Easy and light operation by touch panel without feeling stress
Specification
•Frequency range : 1 k,2.5 k,5 k,12.5 k,25 kHz
•Number of lines (number of sampling points):
400 (1024),800 (2048),1600(4096)
•Trigger : ON/OFF times (1 to 16),
Level (40.0 to 130dB),Position (64-point fixed)
•Average mode : SUM,MAXhold,EXP (exponential)
•Measurement range : Normal range
(wide range: not supported)
•Memory function supported : Manual,Auto,
Logging,Record
•Screen expand display (Expand) : ×1,×2,×4
Recording function
Sound recording function LA-0704 option
Easy recording by selecting memory mode "Record" and by pushing ▷(Start) button.
Specification
Memory mode : Record
Sampling frequency : 64 kHz
Recording time : approx. 8 hours (4 GB, at 16-bit recording) / approx. 5.5 hours (4 GB, at 24-bit recording)
File format : wav (audio data)and csv (trend data for playback : Lzat 1s intervals)
*Simultaneous processing of analysis and recording in RTA mode is enabled
(note) Up to 2 GB of recording by OS-2000 (recorded data with LA).
Recording should be within the following time.
Recording time:
4.5 hours (2 GB, at 16-bit recording)
3 hours (2 GB, at 24-bit recording)
Sound level judgment
Level judgment function LA-0705 option
Level judgment by the sound is available to perform the pass/ fail judgment of the products.
Output cable (Multi I/O-BNC connector) 2 m : provided as standard
Specification
Judging item: SLM mode (SINGLE/DUAL/QUAD)
Lp instantaneous value in Main
Filter 1/1,1/3 (BP: Lp), RTA1/1,1/3(AP1: Lp), FFT (OA: Inst)
(Calculated value: not supported)
Setting level : 30.0 dB to 130.0 dB
DELAY setting : OFF,10 ms,100 ms,1 s,2 s,3 s,5 s,10 s
HOLD setting : 100 ms,200 ms,500 ms,1s,5 s,10 s,30 s,Manual
Output mode : OFF,ON (Mode1LOW), ON (Mode2HI-z)
Not over the setting value: green/ *OFF setting: gray
Over the setting value: red
Sound quality evaluation (Stationary Loudness)
Loudness calculation function LA-0708 option
This function allows measurement based on DIN 45631, which is used for evaluating the loudness of the sound human is perceived.
Effective for sound evaluation that does not give numerical difference in the result of A-weighting. Evaluation based on the loudness value which is one index of the sound quality evaluation is very effective when the evaluation by the noise level alone is not enough.
Equivalent to the previous model (LA-3000)
*Loudness calculation of non-stationary sound : not supported
*Cannot be used to the LA-7200 series Class 2 sound level meter.
Specification
•Conforms to DIN45631
•Calculation list
Loudness value: (diffuse sound field/free sound field)
Loudness level : (diffuse sound field/free sound field)
•Simultaneous measurement
Main : One item from Loudness calculation list
SUB : Three items from SLM values (LAeq etc.)
•Measurement range
Normal range (Wide range : not supported)
•Bar graph : LZ value (dB display)
Accessory
Specification
| LA-7500 Class1 | LA-7200 Class2 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable standard | JIS C 1509-1: 2017 Class1 JIS C 1516 : 2014 Class1 |
JIS C 1J509-1: 2017 Class2 JIS C 1516 : 2014 Class2 |
||||||||||||
| IEC 61672-1: 2013 Class 1 | IEC 61672-1: 2013 Class 2 | |||||||||||||
| ANSI S1.4-2014/Part1 Class1 | ANSI S1.4-2014/Part1 Class2 | |||||||||||||
| Measurement frequency range | 10 Hz to 20 kHz | 10 Hz to 8 kHz | ||||||||||||
| Measurement level range (IEC, JIS) |
A: 24 to 138 dB C: 32 to 138 dB Z: 38 to 138 dB |
A: 23 to 138 dB C: 30 to 138 dB Z: 36 to 138 dB |
||||||||||||
| Intrinsic noise level | A: 16 dB or less C: 24 dB or less Z: 30 dB or less |
A: 17 dB or less C: 24 dB or less Z: 30 dB or less |
||||||||||||
| Microphone | MI-1271 | MI-1471 | ||||||||||||
| Microphone preamplifier | MI-3270 | |||||||||||||
| Linearity range | Wide range: 110 dB / Normal range: 80 dB | |||||||||||||
| Level range | 20 to 130 dB (wide)/60 to 130 dB/50 to 120 dB/ 40 to 110 dB/30 to 100 dB/20 to 90 dB/10 to 80 dB |
|||||||||||||
| Reference range | 50 to 120 dB | |||||||||||||
| Time weighting e.g.: LAF | F (fast), S (slow), I (impulse) and 10 ms | |||||||||||||
| Frequency weighting e.g.: LAF | A, C and Z | |||||||||||||
| Measurement items | Lp, Leq, LE, Lmax, Lmin Lpeak, LN (L5, L10, L50, L90, L95, Lhigh, Llow, Lave, and two more of any LN data) |
|||||||||||||
| Sampling interval | 15.6 μs (Lp, Leq, LE, Lmax, Lmin, Lpeak), 100 ms (LN) | |||||||||||||
| Measurement time | e.g.: If you want to measure a fixed 10-minute period every hour, and wish to measure this for 24 hours, M.T:10 minutes, P.T: 1 hour, and T.T: 24 hours |
|||||||||||||
| Measurement time (Meas.Time) |
Manual (OFF), user-specified setup: 0.1 to 199 hour 59 min. 59.9 sec. resolution: 0.1 sec. | |||||||||||||
| Period time (Period Time) |
1 min. to 24 hours resolution: 1 min. | |||||||||||||
| Total Time (Total Time) |
0.1 sec. to 999 hour 59 min. 59.9 sec. resolution: 0.1 sec. | |||||||||||||
| Start mode | Manual start, timer start, count down start, level start | |||||||||||||
| Display device | 4.3-inch LCD with color backlight (touch panel type) | |||||||||||||
| Digital display | 4-digit/ resolution: 0.1 dB/ update cycle: 1 s | |||||||||||||
| Bar indicator | Wide range: 100 dB of display range/ Normal range: 70 dB of display range | |||||||||||||
| Remaining battery level display | 4-step display | |||||||||||||
| Operation mode | Standard: SLM-Single, Dual, Quad Octave-Filter1/1, RTA1/1 Option : 1/3 octave-Filter1/3, RTA1/3, FFT, Loudness (Stationary sound DIN45631) |
|||||||||||||
| Memory function | Stored in an SD/SDHC card (SDHC card: up to 32 GB.) | |||||||||||||
| Memory mode |
MANUAL (CSV file)………………………………………………………………………standard function AUTO (instantaneous value, calculated value, CSV file)………………standard function |
|||||||||||||
| Panel condition memory | Internal memory (internal condition : 5, EZ condition : 5, power off memory : 1), SD or SDHC card memory (number : depends on the capacity) |
|||||||||||||
| Basic measurement mode | 5 modes (EZ1: LAeq+LCpeak, EZ2: Record, EZ3: Logging 100 ms, EZ4: NC, EZ5) | |||||||||||||
| Clock function |
Built-in (year/ month/ day/ hour/ minute) Continuous operation time : approx. 1 year (charging time: 24 hours from entire discharge state) |
|||||||||||||
| Calibration history function |
Built-in memory (number of stored points: approx. 100 points), Content (Calibration value, VR position for control, internal reference signal of |
|||||||||||||
| Resume function | Stores measurement conditions into the built-in memory | |||||||||||||
| Calibration | Reference signal (when connecting external device) |
Electronic calibration by built-in transmitter (1 kHz sine wave) |

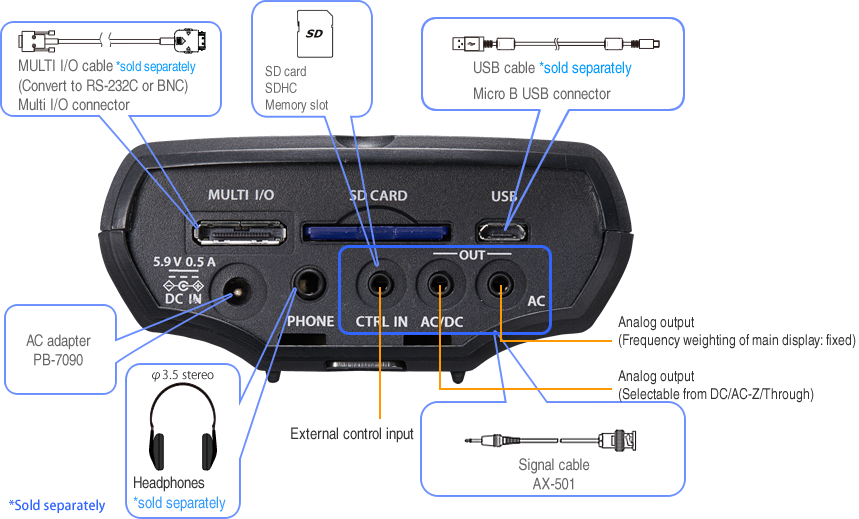

||||||||||||
| Recommended calibrator | SC-3120, SC-2500 | SC-3120, SC-2500, SC-2120A | ||||||||||||
| Output/Input | Phone output (Headphone output) |
Actual sound or recorded sound (playback sound) Selected 1 band of actual sound or recorded sound (playback sound) in Connector : stereo φ3.5 |
||||||||||||
| AC output | Outputs one of A, C, or Z interlocked with the main display | |||||||||||||
| AC output level |
Output level : 0.707 Vrms ±5 (normal range), 2.236 Vrms ±5 (wide range) when range full-scale input,1MΩ loaded Distortion rate (range full scale): 0.2 % or less Load resistance : 10 kΩ or more Offset voltage : ±30 mV or less Output impedance : 50 Ω± 2% |
|||||||||||||
| AC/DC output | Selectable form DC, AC-Z or Through | |||||||||||||
| DC output level | 2.5 V ±20 mV (normal range, wide range) when range full-scale input,1MΩ loaded Scale factor : 0.25 V±10 mV/10 dB Load resistance : 10 kΩ or more Output impedance: 50 Ω ± 2% |
|||||||||||||
| AC-Z output level |
Output level : 0.707 Vrms ±5% (normal range), 2.236 Vrms ±5% (wide range) when range full-scale input,1MΩ loaded Distortion rate (range full scale): 0.2 % or less Load resistance : 10 kΩ or more Offset voltage : ±30 mV or less Output impedance : 50 Ω ±2 % |
|||||||||||||
| Through output level |
0.707 Vrms ±5 % (normal range/ wide range) when full-scale input, 1MΩ loaded Distortion rate (range full scale): 0.2% or less |
|||||||||||||
| External control input |
Operation : Reset and start Control voltage : non-voltage contact input, Absolute max. input voltage: 24.0 V |
|||||||||||||
| Level judgment output(*LA-0705) | Open collector (output withstand voltage : DC+24V or less, sink current : 20mA or less) *Output cable (Multi I/O – BNC connector 2 m) : provided as standard |
|||||||||||||
| Level judgment comparison item |
SLM mode (Main : Lp), Filter 1/1,1/3 (Main (BP) : Lp), RTA1/1,1/3 (AP1 : Lp), FFT (OVERALL : Instant) |
|||||||||||||
| Interface | RS-232C | Baud rate: 9600, 115200 bps, multi I/O cable (sold separately) | ||||||||||||
| USB |
Compliant with USB high speed storage class specification ver. 2.0, Function : Command control or mass storage*3 |
|||||||||||||
| External memory | SD/SDHC memory card (SDHC : up to 32 GB) | |||||||||||||
| Applicable extension cable (for microphone extension) *1 |
103 m (CE conforming cable: up to 30 m)…AG-3400 series *Cable extension exceeding 5m : with correction function. |
|||||||||||||
| Power supply | · Size AA battery (alkaline battery cell or Ni-MH secondary vattery) x 4 pieces · USB bus power (operating input voltage range: 4.75 to 5.25 VDC) · AC adapter (PB-7090, power consumption: approx. 7 VA when using 100 VAC) |
|||||||||||||
| External power operation function |
The main unit is activated automatically when the power is supplied from an AC adapter. |
|||||||||||||
| Windscreen correction function | Function to correct the influence of windscreen *Applicable to the IEC61672-1 even if the windscreen is installed. |
|||||||||||||
| Battery life (continuous use) *2 |
Alkaline battery cell LR6 : approx. 12 hours Ni-MH secondary battery: approx. 12 hours |
|||||||||||||
| Operating (storage) temperature range | -10 to 50 °C (-20 to 60 °C) | |||||||||||||
| Operating (storage) humidity range | 20 % to 90 %RH (10 % to 90 %RH ) with no condensation | |||||||||||||
| Outer dimensions | Approx. 90(W)×279(H)×42(D) | |||||||||||||
| Weight | Approx. 540 g (including batteries) | |||||||||||||

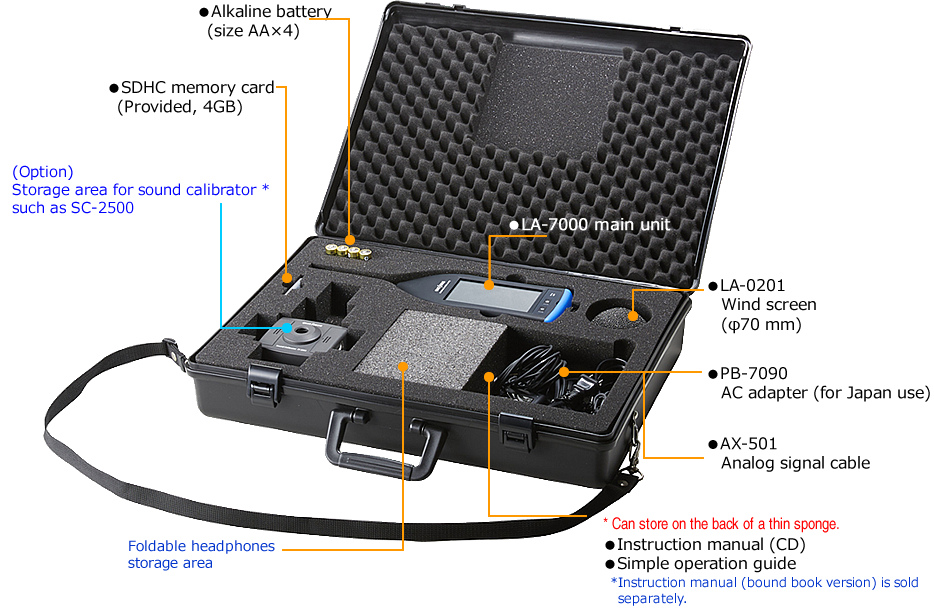

| Accessories |
|
|||||||||||||
*For details about the outlet cable, please contact your nearest distributor or send an e-mail (overseas@onosokki.co.jp) to us.
Please use a recommended SD card when you use the SD memory function.
*1: The described value is extendable length when the exclusive cable is used.
*2: It depends on the using status such as operation mode, memory mode, and backllight.
*3: Supported ver.2.0 or higher version of firmware
