Description

Manufactured products can be exposed to both thermal and mechanical stresses.
These should not be considered separately, as the effects may be linked.

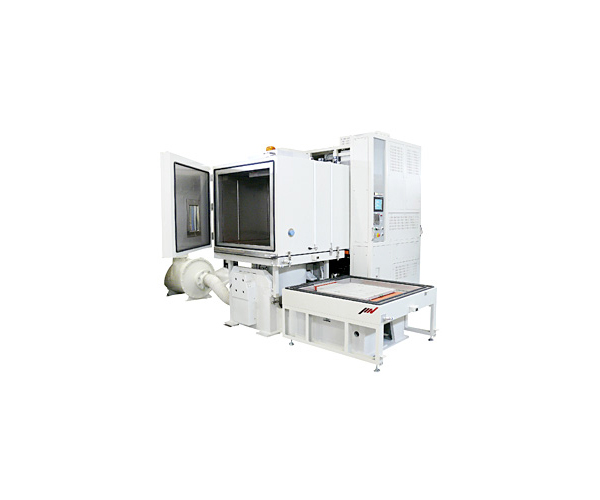

IMV can supply vibration-test systems combined with climatic chambers to provide complete vibration, temperature and humidity environmental testing.
These systems can be custom-designed to meet your application.

Chamber for Vertical Excitation


Inner pressure regulator

Model : Syn-3HA-40-V
Internal dimensions W1000×D1000×H1100mm
Temperature range -40℃~+150℃
Humidity range 20%~95%RH
Temperature pull
down time
+20℃ → -40℃ In 60 minutes
(Curve gradient)
Temperature heat
up time
-40℃ → +150℃ In 90 minutes
(Curve gradient)
Docking image of combined systems

Model : Syn-6HW-30-V
Internal dimensions W1800×D1900×H1500mm
Temperature range -30℃~+80℃
Humidity range 60%~95%RH
Temperature pull
down time
+45℃ → -30℃ In 35 minutes
(Curve gradient)
Temperature heat
up time
-30℃ → +80℃ In 25 minutes
(Curve gradient)

Chamber for both Vertical and Horizontal Excitation

Horizontal slip table combined vibration test system.
Combining a rail support for horizontal move and a lift support for vertical move, chamber combined test for both vertical and horizontal axis.


Vertical use


Horizontal use

Rail and lift support

Model : Syn-3HA-70-VH
Internal dimensions W1000×D1000×H1000mm
Temperature range -70℃~+180℃
Humidity range 20%~98%RH
Temperature pull
down time
1℃/minutes or more
(Curve gradient)
Temperature heat
up time
2℃/minutes or more
(Curve gradient)
Option for chambers for both vertical and horizontal excitation

Optional crane
Adding a dedicated crane provides safe and simple loading and unloading of test specimens.

Rail support and door with observation window
Space-saving rail support for vibration test system.
The test specimen can be monitored using the observation window in the door.

Side window
With a side window, chamber combined docking is possible with
the specimen attached to the shaker for vertical excitation use.

Chamber for Multi-Axis Excitation

Temperature, humidity chamber for multi-axis vibration test system.
Total test time can be reduced by eliminating the need to reconfigure for testing each axis.

2-axis

Model : Syn-4HA-40-M
Internal dimensions W1200×D1200×H1000mm
Temperature range -40℃~+150℃
Humidity range 20%~98%RH
Temperature pull
down time
+20℃ => -40℃ In 80 minutes
(Load condition:combined +
aluminum 60kg)
Temperature heat
up time
-40℃ => +150℃ In 80 minutes
(Load condition:combined +
aluminum 60kg)
3-axis

Model : Syn-3HA-40-M
Internal dimensions W1000×D1000×H1000mm
Temperature range -70℃~+180℃
Humidity range 20%~98%RH
Temperature pull
down time
+20℃ => -70℃ In 40 minutes
(Curve gradient)
Temperature heat
up time
-70℃ => +180℃ In 40 minutes
(Curve gradient)

Prefabricated Chamber for Large Specimens

Large-sized specimen can be tested with a chamber combined test in both vertical and horizontal axis

Model : Syn-6HA-40-VH
Internal dimensions W4000×D2000×H2500mm
Temperature range -40℃~+120℃
Humidity range 30%~95%RH
Temperature pull
down time
+20℃ => -40℃ In 120 minutes
(Curve gradient)
Temperature heat
up time
-40℃ => +150℃ In 150 minutes
(Curve gradient)
Docking image of combined systems

Controllers

Chamber controller
  • 8.4-inch touch panel

    Clear display of information and buttons on the 8.4-inch touch-panel. Clear, unambiguous display of all the information required.

  • Program selection

    Up to 100 programs can be stored in memory.
    Selecting the program to be used is straightforward.

  • Program editable in PC

    Setting-up a test can be performed using a spreadsheet.
    Programs use the standard CSV file format.

  • Program confirmation

    Progress of the test is confirmed by tabular and graphical displays.

System monitor (option)

Connected to system monitor by Ethernet.
The test status of both shaker and chamber can be
monitored remotely.

Integrated control system (option)

Multiple vibration test systems can be control by one system.

Option

Many options are available to make operation easier, such as different door positions and observation window locations.

  • Observation door

    An observation door enables monitoring
    of the test specimen throughout the test.

  • Infrared irradiation

    Car instrumental panel, door,
    bumper, or body sections can be
    tested.

  • Ceiling observation window

    A ceiling observation window allows full
    visibility of the vibration table and test
    specimen with no blind-spots.

  • Safety measures for fuel cell tests

    Safety measures for fuel cell tests
