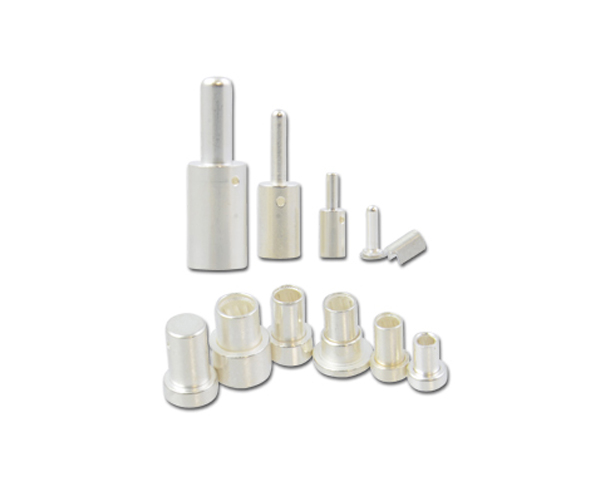

Product Name:RADSOK® SMT RADSERT™

Manufacturer:

Availability:out of stock 0 item(s)

Product Code:

More Information : High Amperage, Board Level, Power, R4 RADSOK® Technology

Description

Amphenol’s RADSOK® enabled SMT RADSERT™ provides a versatile interconnect for high current/high power board to board mezzanine applications. The SMT RADSERT™ is ideal for bringing power to the board from mezzanine cards or busbars suspended above the board. Custom board stack heights are easily accommodated. RADSERT™ interconnects are low profile, single point, high current contacts that can be applied to a PCB or busbar. Also available with “Super Twist” technology for enhanced lead in and radial mis-alignment tolerance to accommodate multiple mating positions or blind mate applications. RADSERT™ termination options include SMT, knurl “Press-fit” or wave solder with a current carrying capability up to 200A

Features & Benefits

· The SMT RADSERT™ is preferred for PCB applications for efficient current transmission and ease of application

· High power to board interconnect in a small package

· Perfect for mezzanine applications

· RADSOK® R4 hyperbolic socket design ensures many points of contact

· The SMT RADSERT™ is compatible with standard surface mount board fabrication processes

· RADSERT™ 2.4mm (35A), 3.0mm (60A), 3.6mm (70A), 5.7mm (120A) & 8.0mm (200A)

· No special crimp tools required

· No threaded fasteners

· Faster through-put

Specifications

· RoHS Compliant
