Product Details

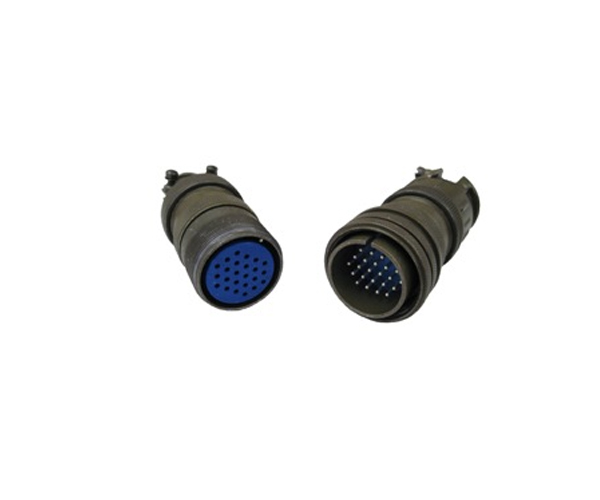

Product Name:97 Series
Manufacturer:Amphenol
Availability:out of stock 0 item(s)
Product Code:
More Information : Cylindrical, Mulit-pin, mil-derivative metal threaded connector for use in benign environments.
Description
Amphenol's 97 Series is the lowest cost cylindrical interconnect solution in the proven 5015 family connector style. An extremely versatileconnector family, the 97 Series offers six shell options, 128 different contact arrangements, 1 to 52 circuits, one of the largest selections of insert patterns on the connector market, and crimp, solder, thermocouple and PCB (100 suffix) contacts.
Features & Benefits
· Low cost, general duty non-environmental
· Splash proof with the 417 suffix plus 97-67 cable clamp (see page 34)
· Solder or crimp termination
· Wide selection of shell styles and insert patterns
· Wide selection of connector finishes – cadmium or non-cadmium (environmentally friendly zinc alloy)
· Threaded coupling, hard dielectric inserts
· Solid or split shell construction
· Accessories for both individual wire seal and jacketed cable
· Durable, field-proven design
· Non-rotating contacts
Specifications
· RoHS Compliant Product Available – EU/2002/95/EC
· UL Recognized – E115497
· CSA Recognized – LR69183
