Benefits

• Multi-standard certification offers universal application range, reduces part varieties and saves costs
• TC-ER and Flexible Motor Supply Cable listings enable open wiring on cable trays as well as the static or highly flexible usage for industrial machines with the same cable
• Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)
• Low capacitance design enables longer cable connection between frequency converter and motor
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Ideal for export-oriented machinery and equipment manufacturers thanks to high normative acceptance by the North American NEC (National Electrical Code)

Application range

• Connecting cable between servo controller and motor
• In power chains or moving machine parts
• Static open wiring on and between cable tray an industrial machine acc. NEC
• Industrial machinery and machine tools
• Linear robots, automated handling equipment
• Assembly lines, production lines, in all kinds of machines

Product features

• Oil-resistant according to UL OIL RES I & II
• Flame-retardant according to CSA FT4
  UL Vertical-Tray Flame Test
• -40°C Cold Bend; -25°C Cold Impact; 90°C Wet or Dry
• Sunlight Resistant
• Direct Burial (according US standard)
• Low capacitance

Norm references / Approvals

• UL TC-ER (exposed run) per UL 1277
• Flexible Motor Supply Cable per UL 2277
• Class 1 Division 2 per NEC Article 501
• c(UL) CIC FT4 (18AWG - 14AWG);
  cRU AWM I/II A/B FT4
• For use in power chains: Please comply with assembly guideline Appendix T3

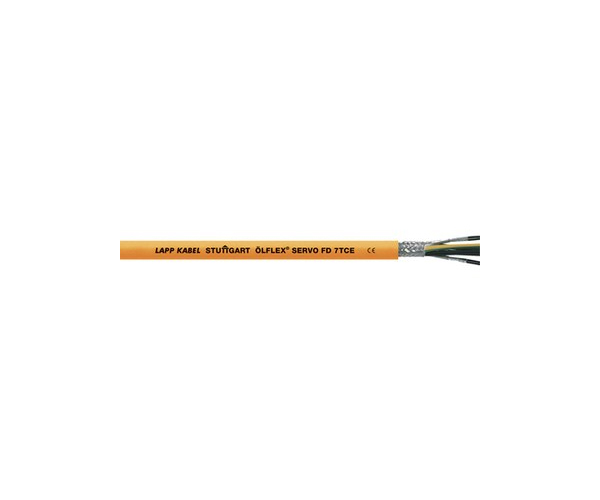

Product Make-up

• Extra-fine wire strand made of bare copper
• Core insulation: EPR compound
• Individual design depending on the item: power cores without or with one or two individually screened control core pairs twisted together in short lay lengths
• Non-woven wrapping
• Tinned-copper braiding
• Outer sheath: Specially formulated thermoplastic elastomer (TPE), orange
