Product Name:Optiv Classic

Manufacturer:Hexagon
Availability:out of stock 0 item(s)
Product Code:
More Information : The Affordable CMM for Multisensor Metrology

Description

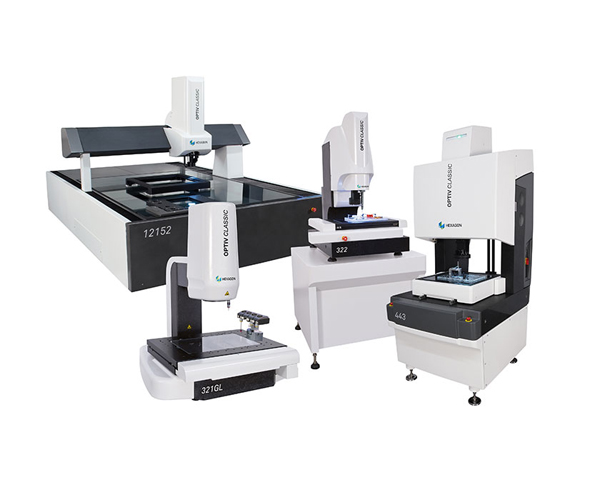

The Optiv Classic line is the easy way of getting started in optical and multisensor metrology. The machine base of all models is made of granite, offering robust construction for tough working conditions. Available in a range of sizes and with a complete range of sensors to choose from, the Optiv Classic coordinate measuring machine (CMM) is your entry to the world of multisensor measurement. The robust design and the extremely reliable optoelectronic measuring system of the Optiv Classic line make these machines particularly suitable for quality assurance in the production area. The CMM construction provides good accessibility to the measuring table from all sides, facilitating part palletising as well as easy manual loading.

Features & Benefits

  • Vision sensor with high-resolution digital camera
  • Motorised CNC zoom
  • Powerful image processing with video filters for image optimisation in difficult optical conditions
  • Variable illumination: Coaxial LED top light, LED back light and multi-segment LED ring light for high contrast illumination of complex surfaces and edges
  • PC-DMIS measuring software: Ease of operation thanks to automatic PC-DMIS routines, for example for part alignment or sensor calibration

Optiv Classic 321 GL

  • Space-saving benchtop unit
  • The most lightweight of the Optiv Classic line with a machine weight of 170 kg
  • 300 x 200 x 150 mm XYZ measuring range
  • Options: Touch-trigger probe HP-TM or TP200, probe module changer racks with up to four ports, rotary indexing table

Optiv Classic 322 / 432

  • Economic entry-level machines with great price/performance ratio
  • Optiv Classic 322: 300 x 200 x 200 mm XYZ measuring range
  • Optiv Classic 432: 400 x 300 x 200 mm XYZ measuring range
  • Options: Touch-trigger probe HP-TM, probe module changer rack HR-P with four ports, rotary indexing table

Optiv Classic 443

  • Robust precision instrument with medium-sized measuring volume
  • Low-vibration granite construction with a fixed bridge and a moving measuring table
  • 400 x 400 x 300 mm XYZ measuring range
  • Options: Touch-trigger probe HP-TM, probe module changer rack HR-P with four or six ports, rotary indexing table

Optiv Classic 8102 / Optiv Classic 12152

  • Bridge-type measuring machine with fixed measuring table and laterally-driven bridge,
    granite traverse with triangular cross-section, freely movable measuring carriage (X axis) from which the vertical axis protrudes
  • Measuring carriage (X axis) and bridge (Y axis) with precision air bearing guides,
    vertical axis (Z axis) with mechanical linear guides
  • Optiv Classic 8102: 800 x 1000 x 225 mm XYZ measuring range
  • Optiv Classic 12152: 1200 x 1500 x 225 mm XYZ measuring range
  • Laser pointer to facilitate navigation during the measuring program generation
  • Optiv Classic 8102: Additionally with an integrated subframe
