Product Details

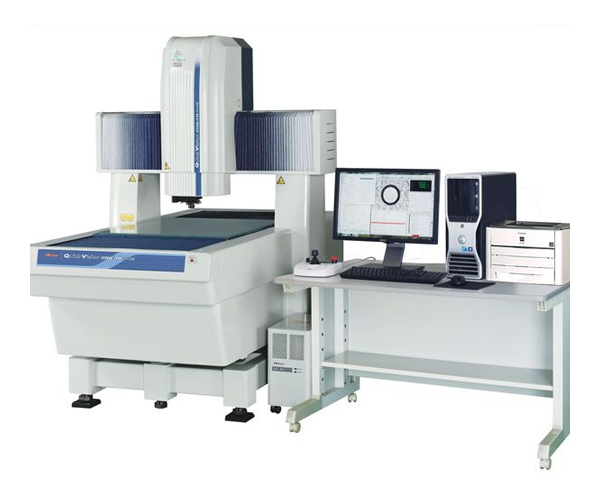

Product Name:CNC Vision Measuring Systems

Manufacturer:Mitutoyo
Availability:out of stock 0 item(s)
Product Code:
More Information :

Description

Middle and compact type CNC Vision Measuring System

QV Active

���i�ڍ�
  • Interchangeable objective lens zoom unit
  • High-definition color camera
  • Touch probe equipped models are also available
  • For detailed information‚ refer to the leaflet No. E14022



    High functionality CNC Vision Measuring System

    QV-APEX/HYPER

    ���i�ڍ�
    • Best seller CNC Vision Measuring System
    • Vision Measuring System with the best delivery record
    • For detailed information‚ refer to the leaflet No. E14007



    Measurement of Detailed Shape System

    UMAP Vision System

    ���i�ڍ�
    • Supporting non-contact and contact hybrid
    • Contact measurement of detailed shape is achieved by extra small stylus with minimum diameter of 15um
    • For detailed information‚ refer to the leaflet No. E14000



      CNC Vision Measuring System
      QV Series

      ���i�ڍ�



      • New model with advanced image of new optical system and improved accuracy of z-axis
      • Wide range of products lineup is provided in terms of accuracy‚ range and function
      • For detailed information‚ refer to the leaflet No. E14007

        CNC Vision Measuring System with Touch Trigger Probe
        QV TP Series

        ���i�ڍ�

        • Both non contact and contact measurement can be performed
        • Achieves steric measurement such as press forming products/plastic molding products/machining products
        • For detailed information‚ leaflet is available on request

          CNC Vision Measuring System with non contact displacement sensor
          QV HYBRID TYPE1/TYPE3

          ���i�ڍ�

          • Non contact scanning measurement can be performed
          • Equipped with wide variety of scanning tools such as line/cross/circle/helical
          • Support for surface 3D form measurement / dummy roughness evaluation etc
          • For detailed information‚ leaflet is available on request

            Measurement of Detailed Shape System
            UMAP Vision System

            ���i�ڍ�



            • Supporting non-contact and contact hybrid
            • Tip sphere of diameter 15/30/70/100/300 (um) are provided
            • For detailed information‚ refer to the leaflet No. E14000

              High accuracy CNC Vision Measuring System
              ULTRA QV404PRO

              ���i�ڍ�



              • Flagship machine supports request on high accuracy
              • High level Vision Measuring System with unparalleled high rigidity body
              • Equipped with Guide method of hydrostatic air bearing
              • For detailed information‚ refer to the leaflet No. E4224

                Large CNC Vision Measuring System
                QV ACCEL Series

                ���i�ڍ�



                • Large Vision Measuring System with the measuring range of 800mm to 1700mm or more
                • Moving-bridge type supports easy to fix the workpiece
                • Optimal for light thin and short life cycle workpiece
                • For detailed information‚ refer to the leaflet No. E14007

                  Non stop CNC Vision Measuring System
                  QV STREAM Series

                  ���i�ڍ�



                  • New model with advanced image of new optical system and improved accuracy of z-axis
                  • Great throughput improvement due to non-stop image measurement.
                  • For detailed information‚ refer to the leaflet No. E14007

                    Measurement of Detailed Shape System
                    M-NanoCoord Series

                    ���i�ڍ�

                    • High accuracy measuring system developed for targeting measurement of detailed shape
                    • Various details shape evaluation is achieved by measuring stage + vision head + high sensitivity sensor
                    • For detailed information‚ leaflet is available on request

                      Non contact 3D measuremnt system
                      Hyper Quick Vision WLI Series

                      ���i�ڍ�



                      • Non contact measurement of both coordinate and 3D form measurement are achieved
                      • Advanced high accuracy dual head measuring system with white light interferometer optiocal head
                      • Supports measurement of many detailed dimensions by excellent 3D analysis software
                      • For detailed information‚ refer to the leaflet No. E14001

                        Manual Type Vision Measuring System
                        QS Series

                        ���i�ڍ�



                        • Program control zoom lens (QS200Z and QS250Z)
                        • Color CCD camera
                        • For detailed information‚ refer to the leaflet No. E14004

                        Tags: CNC Vision Measuring Systems, Mitutoyo
