Product Details
Product Name:PCU Series
Manufacturer:Apiste
Availability:out of stock 0 item(s)
Product Code:
More Information :
Description
A Chiller Unit controls circulated water and cools various types of coolant.
The unit contains which contains a tank, a cooler, and a pump inside, and it cools and controls circulated water, and supplies the water to the load side. We answer your needs by supplying an Apiste chiller with a wide assortment of capacities of the pump’s water supply and cooling capacities. Moreover, we've also adopted a non-pulsating pump that reduces the vibrating effects directly to the load side. We offer a solution for environments in which strict accuracy is needed.
Options

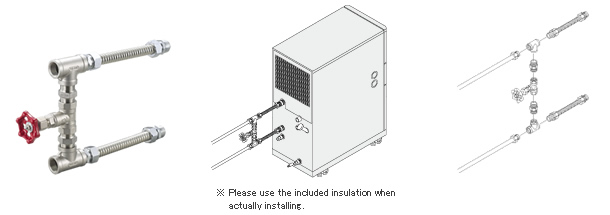

Circulated Water Bypass Kit PCU-P002
This kit is for use when the quantity of circulated water flow is below the rated flow. When the quantity of circulated water flow is below the rated flow, the chiller unit's cooling capacity can suffer.
Kit Contents
| Flexible tube | 2 | Nipples | 2 |
|---|---|---|---|
| Nipples (small) x 2 | 2 | Insulation locks | 10 |
| Packing x 2 | 2 | Thread sealing tape | 1 |
| Tees | 2 | Heat insulation material | 3 |
| Globe valve | 1 | User manual | 1 |
Precautions
- Please tighten to the suggested torque of 40~45N･m.
- Please wrap the thread sealing tape around clockwise.
- Please turn PCU power on after operating on the pipes in front of the bypass kit.
- Please cease use immediately if you experience water leakage or other problems.

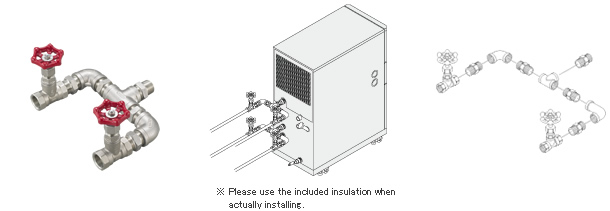

Circulated Water Branch Kit PCU-P003
This kit allows for the sending of circulated water to dual loads.
Kit Contents
| Elbows | 2 | Insulation locks | 10 |
|---|---|---|---|
| Tee | 1 | Thread sealing tape | 1 |
| Globe valves | 2 | Heat insulation material | 3 |
| Nipples | 5 | Adhesive tape | 1 |
Precautions
- Please tighten to the suggested torque of 40~45N･m.
- Please wrap the thread sealing tape around clockwise.
- Please turn PCU power on after operating on the pipes in front of the bypass kit.
- Please cease use immediately if you experience water leakage or other problems.

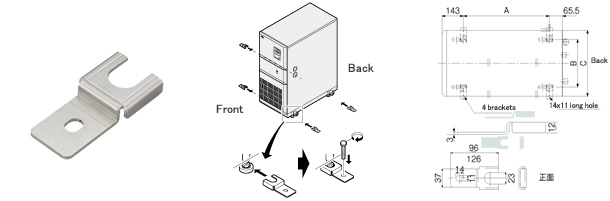

Dropout Prevention Clasp PCU-P001
This is an onsite fixing blanket. It helps to prevent dropout.
| Model name | A | B | C |
|---|---|---|---|
| PCU-1600R | 541.5 | 276 | 398 |
| PCU-3300R PCU-6300R |
571.5 | 316 | 438 |

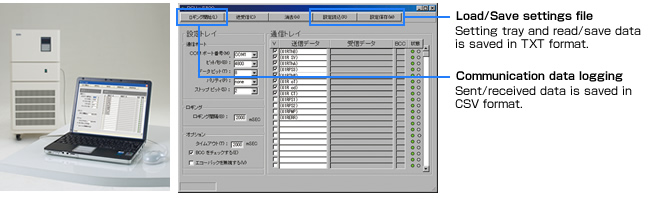

RS-232C Communications software PCU-S100
This software is a program which reads and writes settings values for the precision liquid temperature control unit PCU series.
It operatess on PCs running Windows XP, and uses 1 channel of the RS-232C interface.
- Operating Environment
- OS: Windows XP (Home Edition/Professional)
- CPU: Pentium 90MHZ or higher is recommended
- HDD: At least 10GB of free memory
- Display: Monitor with resolution of high color (16bit) Super VGA (800x600) or higher
- External interface: RS-232C (serial interface)
- *Microsoft Windows is a registered trademark of Microsoft Corporation in the USA and other countries.

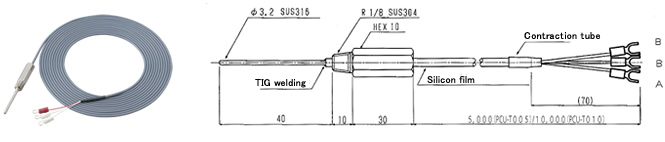

External Temperature Control Sensor PCU-T005/PCU-T010
Chiller units include external temperature control input terminals as standard equipment.
It is possible to switch from normal circulated water temperature control to temperature control of work related parts.

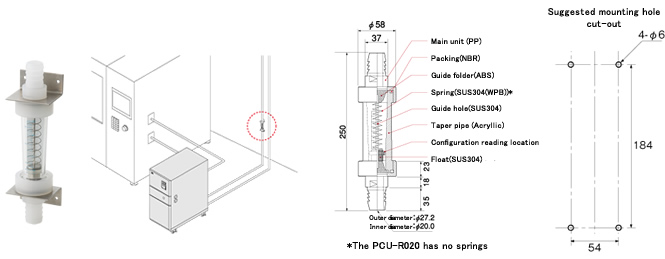

Flowmeter PCU-R020/PCU-R050/PCU-R100
This can measure a the flow rate of a chiller unit's circulated water and cooling water.
It also works on plastic pipes, and can be easily installed.
- Easy to install
- 3 types available according to flow rate
- Space-saving, compact design
Specs
| Model | PCU-R020 | PCU-R050 | PCU-R100 |
|---|---|---|---|
| Fluid | H2O | ||
| Graduation Rate | 2～20ℓ/min | 5～50ℓ/min | 10～100ℓ/min |
| Resolution | 2ℓ/min | 5ℓ/min | |
| Specific weight | 1 | ||
| Viscosity | 1cP | ||
| Fluid pressure | 0.1~0.5MPa | ||
| Fluid temperature | 0~40℃ (nonfrozen) | ||
| Surrounding temperature | 0~40℃ | ||
| Accuracy* | ±5%FS | ||
| Flow direction | Bottom→Top (Vertical) | ||
*When fluid pressure = 0.3MPa, fluid temperature = 20℃.
