- Universal platform for HDMI 2.0, MHL 1.4/2.2 and analog A/V interfaces
- Protocol compliance testing
- Enhanced video and audio analysis
- Touchscreen user interface with multilingual support
- Integrated test automation and report generation.
Brief Description

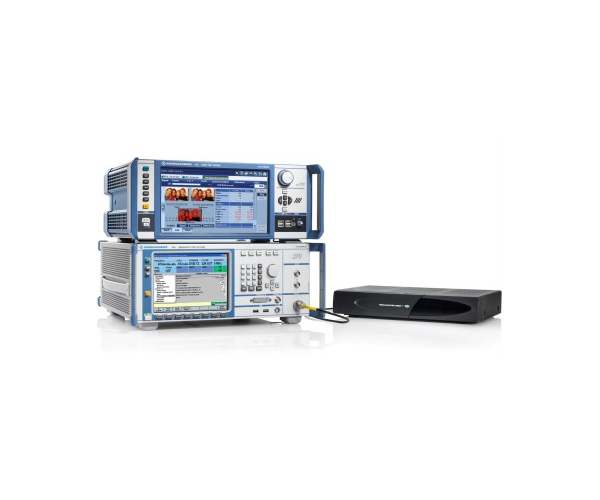

Rohde & Schwarz offers A/V T & M instruments covering the entire value chain in the consumer electronics sector – the R&S®VTC video test center for development applications, the R&S®VTE video tester for automated applications in test setups and the R&S®VTS compact video tester for manufacturing applications. The R&S®VTC/VTE/VTS video testers are used for testing video and audio interfaces on consumer electronics equipment.
Features & Benefits
- Mobile high-definition link (MHL) interface testing
- Realtime protocol analysis
- Control bus (CBUS) testing
- Generation of user-defined patterns and patterns in line with MHL, CEA-861-E
- Compliance testing of sources, sinks and dongles for MHL interfaces
- High-definition multimedia interface (HDMI) testing
- HDMI signal analysis up to 18 Gbit/s
- HDMI signal generation up to 18 Gbit/s (6G mode)
- HDMI 1.4 and 2.0a testing in line with the HDMI compliance test specification (CTS)
- Time domain analysis solution with full 6 Gbps support for TMDS sources
- Powerful eye diagram analysis using subsampling
- Precompliance measurement solution for HDMI sources
- RF test signal generation for TV and audio broadcast standards
- Realtime coding of all relevant analog and digital standards
- Integrated transport stream player and analog audio/ video generator
- Extensive test signal libraries of transport streams and analog test patterns
- Analog audio/video interface testing
- Composite (CCVS, CVBS) signal analysis
- YCbCr/RGB/RGBHV component signal analysis
- Powerful two-channel audio analysis
- Complementary functions for media content analysis
- Video analysis of composite or digital component signals in the time domain
- Double-ended video and audio quality analysis
- Audio analysis
- Psycho-acoustic measurements
- Easy operation
- Local operation via touchscreen
- Remote control and remote operation over a network from a tablet or PC
- Remote control for integration in automated test systems
- Integrated R&S®AVBrun test sequencer
-
Specifications
R&S®VTC base unit Dimensions without handles 445 mm × 176 mm × 307 mm
(17.5 in × 6.9 in × 12.1 in)Weight 12.0 kg (26.5 lb) R&S®VTE base unit Dimensions without handles 232 mm × 132 mm × 307 mm (3 HU)
(9.1 in × 5.2 in × 12 in)Weight 6 kg (13.28 lb) R&S®VTS base unit Dimensions without handles 229 mm × 44 mm × 406 mm
(9.02 in × 21.42 in × 15.98 in)Weight 4 kg (8.81 lb) MHL extension R&S®VT-B2350 MHL RX/TX Interface MHL in (HDMI type A), MHL out (micro USB), HDMI out
(type A, auxiliary)MHL standard MHL 1.4/2.2 MHL analysis Basic data video formats and timing (24-bit mode), audio formats and sampling rates, HDCP parameters, CBUS lock status CEA-861E InfoFrames AVI, audio, SPD and MPEG InfoFrame interpretation Decoding on-screen video, internal audio playout MHL generation Patterns static test patterns (all MHL video resolutions; 24-bit mode/PackedPixel mode) Audio test tones (all PCM audio formats and sampling rates) EDID reader display of EDID data R&S®VT-B2351 MHL RX PackedPixel Interface MHL in (HDMI type A),
HDMI out (type A, auxiliary)MHL standard MHL 1.4/2.2 MHL analysis Basic data video formats and timing (PackedPixel mode), audio formats and sampling rates, HDCP parameters, CBUS lock status CEA-861F InfoFrames AVI, audio, SPD and MPEG InfoFrame interpretation Decoding on-screen video, internal audio playout R&S®VT-K355 MHL CTS sink test MHL CTS sink tests in line with CTS 1.4/2.2 section 4.2 4.2.1 to 4.2.3, 4.2.5 to 4.2.9 MHL CTS dongle tests in line with CTS 1. 4/2.2 section 5.2 5.2.1 to 5.2.3, 5.2.5 to 5.2.9 R&S®VT-K2355 MHL CTS source test in line with CTS 1.4/2.2 section 3.2 3.2.2 to 3.2.4, 3.2.6 to 3.2.10 R&S®VT-K2356
CBUS tracersending and receiving of MSC, RCP, RAP, UCP commands HDMI extensions R&S®VT-B2362 HDMI CTS RX/TX 600 MHz Interface HDMI in (HDMI type A), HDMI out (HDMI type A) HDMI standard HDMI 2.0 (6G mode) TMDS character rate up to 600 Mcsc HDMI analysis (CTS source test only, see R&S®VT-K2365 HDMI CTS source test) Hot plug detect (HPD) switchable on/off Input parameter measurements pixel clock state
TMDS character clockHDMI analysis (CTS sink test only, see R&S®VT-K365 HDMI CTS sink test) HotPlug detect (HPD) status R&S®VT-B2360 HDMI RX 225 MHz, R&S®VT-B2361 HDMI RX 300 MHz Interface HDMI in (HDMI type A), HDMI out (auxiliary),
S/PDIF in (optical)HDMI standard HDMI 2.0 (3G mode) TMDS character rate up to 300 Mcsc HDMI analysis Basic data video formats and timing up to 4K, audio formats
and sampling rates, HDCP parametersCEA-861F InfoFrames AVI, audio and HDMI vendor-specific InfoFrame Decoding on-screen video, internal audio playout R&S®VT-K2365 HDMI CTS source test in line with HDMI CTS 1.4
in line with HDMI CTS 2.07-1, 7-16 to 7-19, 7-23 to 7-40
HF1-31, HF1-33, HF1-35, HF1-51
available with R&S®VT-B2362:
HF1-13, HF1-10, HF1-11, HF1-12, HF1-21,
HF1-22, HF1-32, HF1-14, HF1-15, HF1-16,
HF1-24, HF1-25, HF1-26, HF1-34, HF1-35,
HF1-41, HF1-36, HF1-37, HF1-38, HF1-39,
HF1-40, HF1-47, HF1-48, HF1-49, HF1-18,
HF1-28, HF1-52R&S®VT-K2366 CEC tracer sending and receiving of CEC commands R&S®VT-B360 HDMI TX 300 MHz Interface 4x HDMI out, HDMI standard HDMI 2.0 (3G mode) TMDS character rate up to 300 Mcsc HDMI generator Basic data video formats (HDMI, DVI) , audio generator, HDCP parameter, hot plug status Patterns static test patterns (up to 4K) Audio generator test tones
(all PCM audio formats and sampling rates)CEA-861F InfoFrames AVI, audio and HDMI vendor-specific InfoFrame Audio return channel analysis on port 1 R&S®VT-K2150 audio analysis R&S®VT-K365 HDMI CTS sink test in line with HDMI CTS 1.4
in line with HDMI CTS 2.08-15 to 8-25, 8-29 to 8-30
HF2-9, HF2-23, HF2-26, HF2-25, HF2-31,
HF2-32, HF2-35, HF2-39, HF2-41, HF2-53
available with R&S®VT-B2362:
HF2-5, HF2-24, HF2-6, HF2-7,
HF2-8, HF2-36, HF2-37, HF2-38, HF2-25, HF2-10Time domain analyzer extensions R&S®VT-B2380 TMDS time domain analyzer module Interface CLK in (SMA), CH+/CH– in (SMA),
CONTROL in/outAnalog bandwidth DC to 13 GHz (typ. –3 dB) Converter resolution 8 bit Eye scope cursor
mask
horizontal histogram
vertical histogramdata 0+ and 0–
data 0+ and GND, data 0– and GND
data 1+ and 1–
data 1+ and GND, data 1– and GND
data 2+ and 2–
data 2+ and GND, data 2– and GNDR&S®VT-K2385 HDMI CTS source test (elec.) similar to HDMI CTS 1.4
similar to HDMI CTS 2.0
limitations due to different measurement principle7-1, 7-2, 7-3, 7-4, 7-6, 7-7, 7-8, 7-10, 7-11, 7-12,
7-13 and 7-15
HF1-1, HF1-2, HF1-3, HF1-4, HF1-5 and HF1-6R&S®VT-Z2385 HDMI type A TPA test adapter (plug) Interface HDMI in (HDMI type A plug), CLK out (SMA),
CH+/CH– out (SMA), CONTROL in/outHigh-definition multimedia standard HDMI 1.4/HDMI 2.0 Analog A/V extension R&S®VT-B2370 analog AV RX Interfaces composite (1 × BNC)
component (6 × BNC)
audio L/R (2 × BNC)
video H-Sync/V-SyncAnalysis requires complementary media content analysis option(s) R&S®VT-K2371 component support activation of component inputs Complementary media analysis options R&S®VT-K2100 HDMI type A TPA test adapter (plug) Videoscope single, parade and overlay waveform view;
marker and delta marker for timing and level
measurementsVectorscope color measurements, RGB pixel values R&S®VT-K2101 video measurements automated signal parameter measurements of noise, frequency response, linear and non-linear distortions for composite and component signals R&S®VT-K2111 A/V distortion analysis picture difference analysis, PSNR, SSIM, picture
failure point, picture freeze, black frame, dropped
frames, pixel errorsR&S®VT-K2150 audio analysis level, THD+N, frequency response, signal to noise ratio(SNR), crosstalk, interchannel phase R&S®VT-K2151 compressed audio support channel status bit view, built-in decoding for
compressed audio content in line with AC3,
EAC3, Dolby™ TrueHD, MPEG-1/2 and
MPEG-2/4 AACR&S®VT-K2158 PESQ measurement in line with ITU-T P.862 R&S®VT-K2159 POLQA measurement in line with ITU-T P.863 Modulator extensions R&S®VT-B600 broadcast TX modulator RF characteristics Frequency range base unit,
