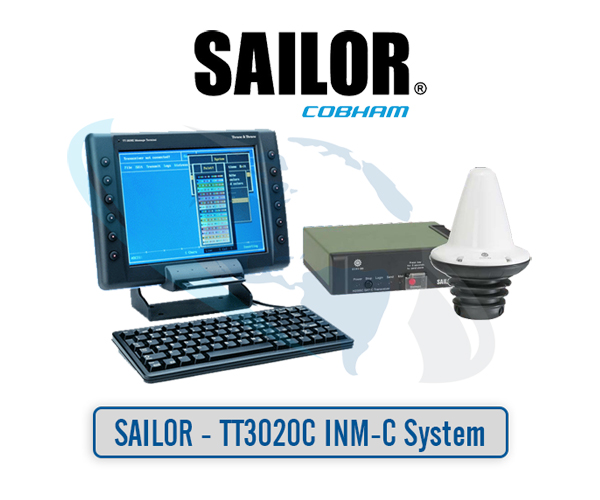

AILOR - TT3020C INM-C The SAILOR Inmarsat-C GMDSS System from Thrane & Thrane rests on a solid combination of two highly acclaimed and reliable products that roams the seas and is the living legend of global safety.
The SAILOR TT-3020C In Smarsat-C GMDSS transceiver is your ultimate choice for global marine safety communication. Complying with the latest SOLAS/GMDSS requirements, the system includes Worldwide marine distress functions and thus ensuring that rescue activities can be initiated in a fast and secure way.
It also enables users to send and receive all kinds of written messages, including Enhanced Group Call (EGC) such as SafetyNET and FleetNet. The SAILOR TT-3020C GMDSS transceiver supports all In Smarsat-C communication modes, including e-mail, TELEX, X.25 and mobile to land SMS and fax services.
The SAILOR TT-3005M antenna is the smallest maritime In Smarsat-C antenna in the world, and you are ensured trouble free operation down to -15o of elevation. The SAILOR TT-3005M is fully sealed and designed for the most extreme weather conditions at sea.

Overview

The well-known SAILOR TT-3020C Inmarsat-C GMDSS Transceiver is your ultimate choice for global marine safety communication. Complying with the latest SOLAS/GMDSS requirements, the system includes World-wide Marine Distress functions and thus ensuring that a rescue mission can be initiated in a fast and secure way. It also enables users to send and receive all kinds of written messages, including Enhanced Group Call such as SafetyNET and FleetNet.
The TT-3020C offers fast and reliable connections to any fax and data subscriber worldwide and/or directly to and from another Inmarsat-C unit.
The ruggedized, extremely compact design, and power conserving features of the TT-3020C transceiver, makes it very attractive for use in your new GMDSS installation.
Use it for control, management, and/or communication, and always be ensured of a fast and reliable transfer of vital information, i.e. position reporting, data monitoring, messaging, fleet co-ordination, etc.

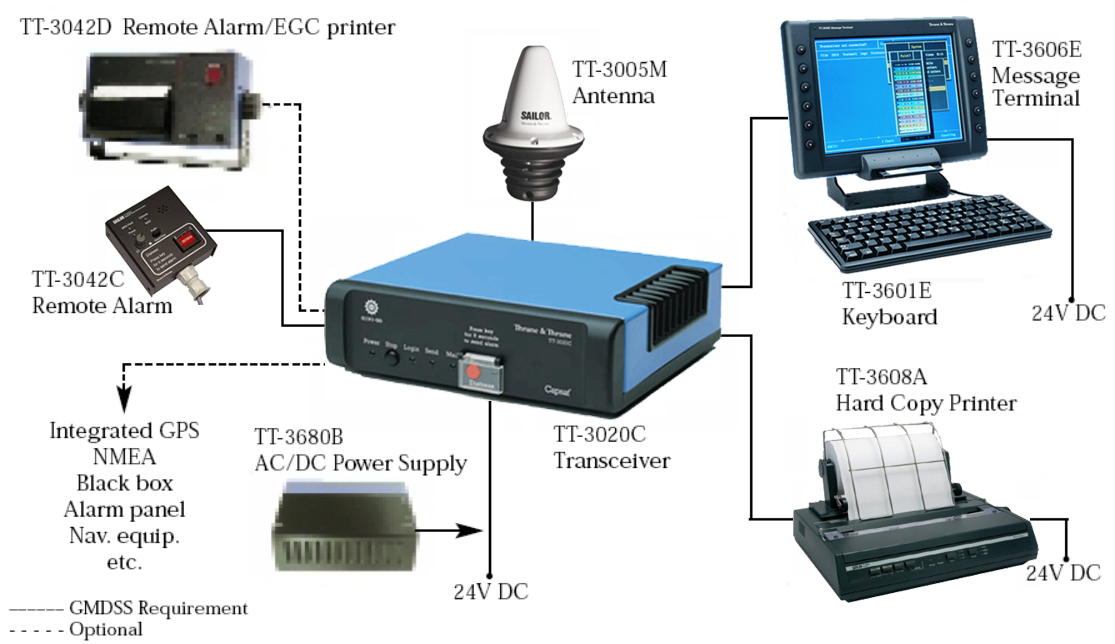

The TT-3020C transceiver can be supplied with our compact omni-directional SAILOR TT-3005M antenna, integrating both Inmarsat-C and GPS operation into one single unit.
Operation and control of the TT-3020C may be performed via the TT-3606E GMDSS approved message terminal.
Additional peripherals such as ac/dc power supply with automatic switchover, remote alarms, and EGC printers, etc. may be supplied for your GMDSS installation.

The transceiver also includes a number of parallel control ports, standard NMEA 0183 nav/data interface and an advanced ArcNet local network interface for connection of up to several ArcNet printers and alarm panels.
